Extractor “EXT 600” – code: 702E – Frigomar

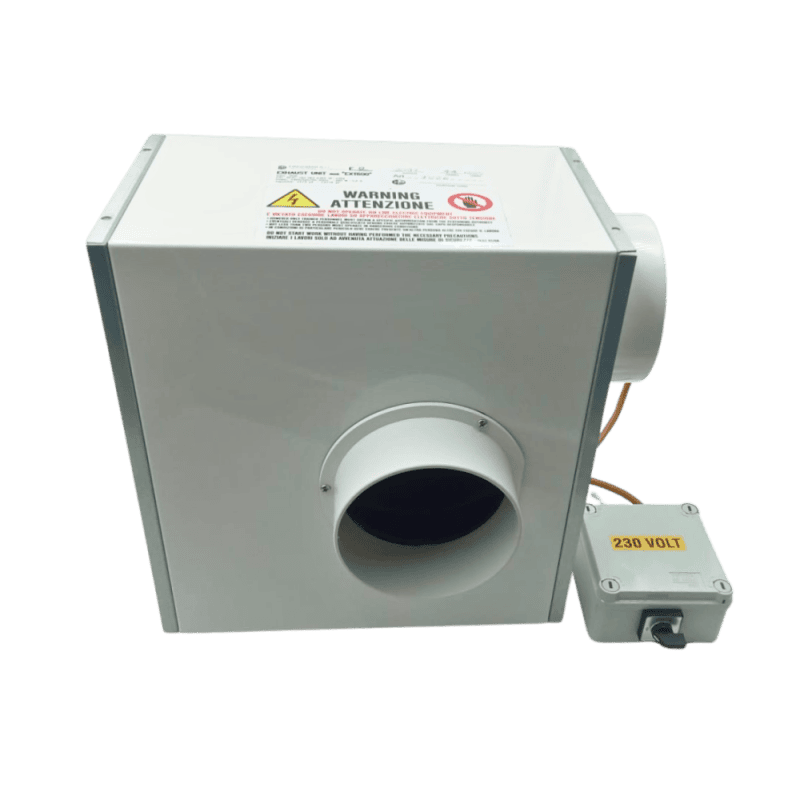

Frigomar air extractor “EXT 600” – code 702E

The’Frigomar air extractor EXT 600, code 702E, is an air extraction unit designed for ventilation and air treatment systems installed in nautical and onboard plant engineering.

This device is part of the Frigomar air extraction units line and is intended to evacuate air from the interior spaces of the boat, such as bathrooms, kitchens, laundries, or technical rooms, contributing to air renewal when used in synergy with renewal or ventilation systems.

The system is designed to continuous service, with the possibility to reduce flow rate and noise during night operation via speed controller.

Product identification

• Product: Air extraction unit “EXT 600”
• Product code: 702E
• Brand / manufacturer: Frigomar srl
• SKU: FRI000000121
• Category: Spare parts / marine ventilation systems

Function in the system

The air extraction units are designed to remove air from the interior spaces of the boat and contribute to proper air renewal.

The extractor typically operates in combination with ventilation or air renewal systems, allowing air to be evacuated from rooms such as:

• bathrooms
• kitchens
• laundries
• technical rooms
• other interior spaces of the boat.

The sizing of extraction systems is generally designed for continuous operation, maintaining adequate ventilation conditions of the environments.

Main technical specifications (model 702E)

• Air flow rate: 1000 m³/h
• Power consumption: 220 W
• Suction line: 1 × Ø 120 mm
• Discharge line: 1 × Ø 120 mm
• Power Supply: 230 V / 1 phase / 50–60 Hz
• Weight: 6 kg

Air connections

For the model 702E the system includes:

• 1 suction line Ø 120 mm
• 1 discharge line Ø 120 mm

This configuration allows integration into ventilation systems with dedicated ducting.

Applications

The Frigomar air extraction unit is intended for ventilation systems installed in:

• pleasure or professional boats
• nautical air conditioning and ventilation systems
• indoor environments where air exchange is required.

Operational advantages

In onboard ventilation systems, a dedicated extraction unit allows:

• to evacuate air from the boat's interior spaces
• to contribute to proper air exchange in combination with renewal systems
• maintain ventilation of the rooms during continuous operation.

Recommended checks before purchase

To ensure proper integration into the system it is advisable:

• verify the correspondence of the product code 702E
• check the diameter of the suction and exhaust lines required by the system
• compare the specifications with the system's technical documentation.

Installation

Installation must be carried out by qualified personnel or by technicians experienced in marine ventilation and air conditioning systems.

It is recommended to follow the procedures provided by the manufacturer and the configuration of the existing system.

FAQ – Frequently Asked Questions

What is the product code of the “EXT 600” Frigomar Extractor?

The supplier product code indicated for the “EXT 600” Frigomar Extractor is 702E.

What is the product SKU?

The SKU associated with this item is FRI000000121.

Who is the supplier/brand of the EXT 600 extractor?

The indicated supplier/brand is Frigomar srl.

Which category does this article fall into?

The product is listed in Spare Parts, within the Frigomar catalog.

How do I check if it is the correct replacement for my system?

It is recommended to verify the correspondence of code 702E and the denomination EXT 600 with the technical documentation or the spare parts list of your system, or to request support by providing these references.
